Conventional Smoke Detector By Gst

Description

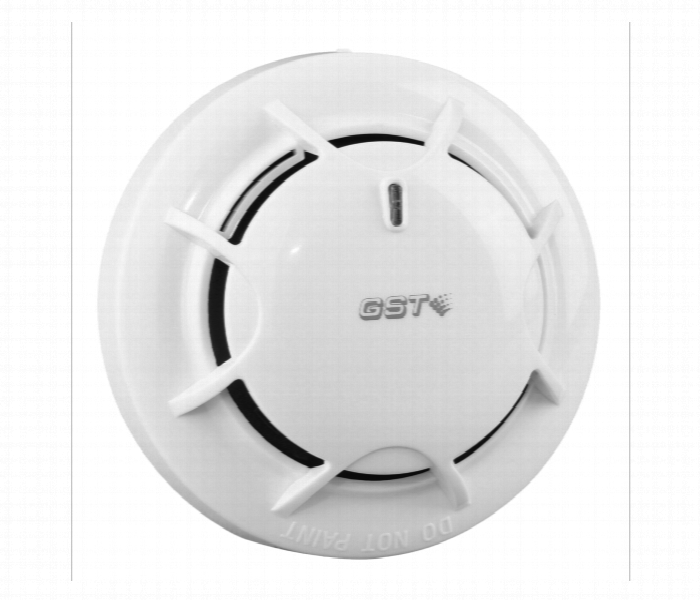

DC-9102E Conventional Optical Smoke Detector The GST DC-9102E is a reliable conventional photoelectric smoke detector designed for early fire detection in commercial and industrial environments, including hotels, offices, schools, warehouses, and computer rooms. It features drift compensation, self-diagnostics, chamber contamination monitoring, 360° LED visibility, and programmable smoke sensitivity for enhanced detection reliability and easy maintenance. Key Features: Conventional optical/photoelectri c smoke detection 2 programmable smoke sensitivity levels Drift compensation for improved environmental adaptability Self-diagnostic and chamber contamination checking 360° LED visibility for easy status identification Local test activation via reed switch Remote indicator output Removable sensing chamber for convenient maintenance Operating voltage: 16–28 VDC Quiescent current: <60 μA Alarm current: ≤55 mA EN54-7 certified / LPCB Ceiling-mounted ABS housing Suitable for indoor applications
