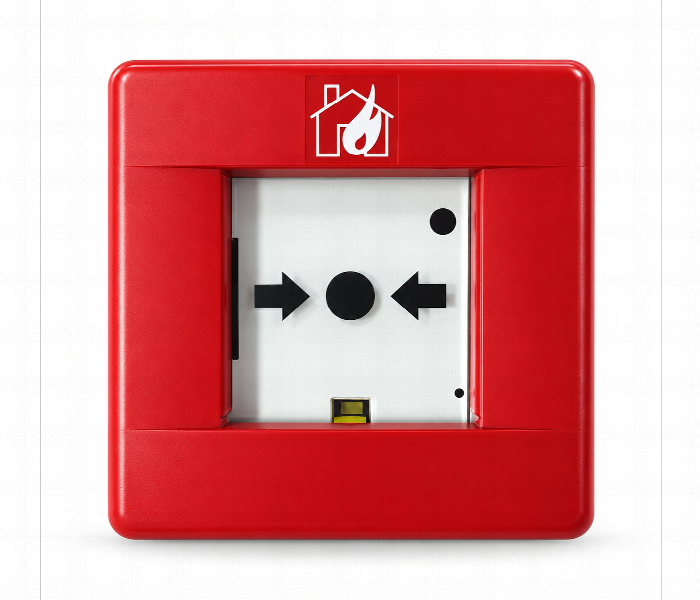

Conventional Manual Call Point Ecb20R

Description

Conventional Resettable Manual Call Point – ECB20R The ECB20R Conventional Resettable Manual Call Point is designed to provide a reliable and immediate means of manually activating a fire alarm system during a fire or emergency. By pressing the transparent resettable button area, the device sends an alarm signal to the connected conventional fire alarm control panel. Featuring a 470Ω alarm resistor, IP24 protection, and a durable ABS plastic housing, the ECB20R is suitable for indoor fire alarm installations in commercial, residential, and public buildings. Its resettable button eliminates the need to replace breakable glass after activation, making it convenient for routine testing and operation. Key Features: 470Ω built-in alarm resistor Resettable manual call point Compatible with conventional fire alarm panels EN 54-11:2001 / A1:2005 compliant IP24 protection Durable ABS plastic housing Red external cover Transparent resettable button Alarm current: <70 mA Cable diameter: 0.5–1.5 mm Operating temperature: -10°C to +55°C Dimensions: 86 × 86 × 39 mm Indoor Environment Class II CPR certified (Notified Body No. 1922)
