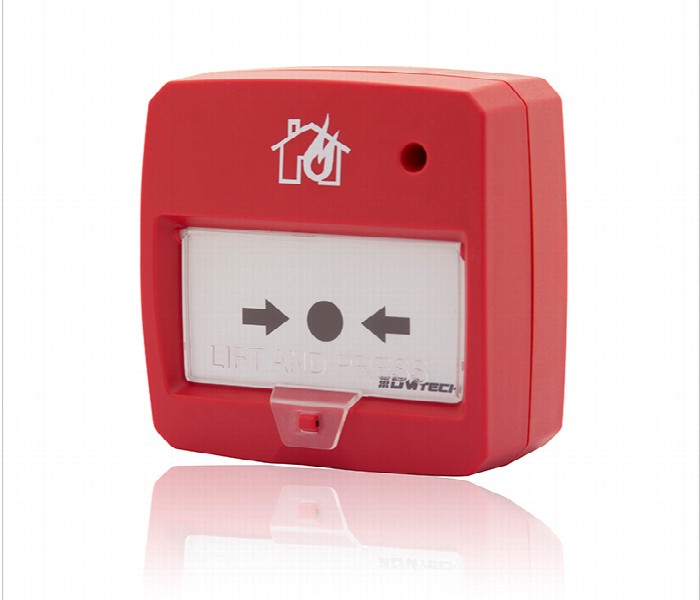

Conventional Manual Call Point D9000 Mcp

Description

The D9000 MCP manual call point is designed for indoor operation in fire detection systems and meets the requirements of European Standard EN54-11; The fire detector is designed for easy installation and maintenance. There are built-in channels in the base for inserting cables in three directions – left, right, and top. The key to open the fire detector and restore the removed element is the same and is attached to the base. D9000 The MCP has a protective transparent cover and a possibility of mounting a seal. Upon activation, except the graphic indication of the operating element, for visibility from a distance is activated and red LED. Supply voltage: (9-30) V / DC Resistance: 500Ω / (1 kΩ in broken PCB bridge) Current at 24V, 46mA / (22mAin broken PCB bridge) LED indicator: Red Protective cover: transparent Cross section of connecting cables: 0,4÷1,5 mm2 Operating temperature range: minus 10ºС ÷ 50ºС Humidity: (93 ± 3)% at40ºС Degree of protection: IP 40 Dimensions: (90 х 90 х 44) mm Weight: 0,120 kg Material: ABS plastic
