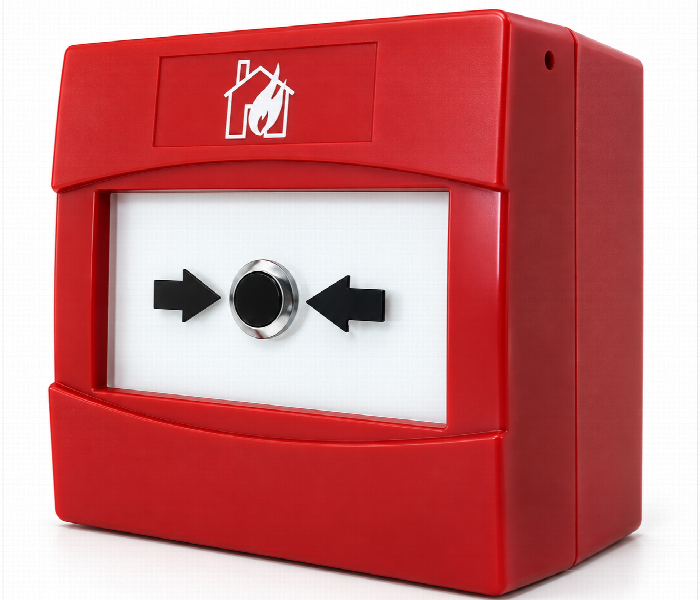

Conventional Manual Call Point Dc 9204E

Description

DC-9204E Innovation Manual Call Point The GST DC-9204E is a non-addressable conventional manual call point (MCP) designed for reliable manual fire alarm activation in public and commercial environments. When a fire is detected, the user can manually press the frangible element to transmit an alarm signal to a compatible conventional fire alarm control panel. Its plug-in structure allows straightforward installation, while the reusable initiating element can be manually reset using the supplied special key. The unit supports both surface and conduit-embedded mounting and complies with EN 54-11. Key Features: Non-addressable conventional manual call point Manual activation by pressing the frangible element Reusable and key-resettable design Plug-in construction for easy installation Suitable for indoor public and commercial applications Red alarm indicator illuminates after activation Two-wire connection Operating voltage: 12–28 VDC Alarm current: ≤30 mA EN 54-11 compliant IP43 ingress protection ABS enclosure with red finish Operating temperature: -10°C to +55°C Dimensions: 87.1 × 87.1 × 58.5 mm with back box Weight: Approx. 160 g with back box
