Dm Tech Conventional Sounder S9000

Description

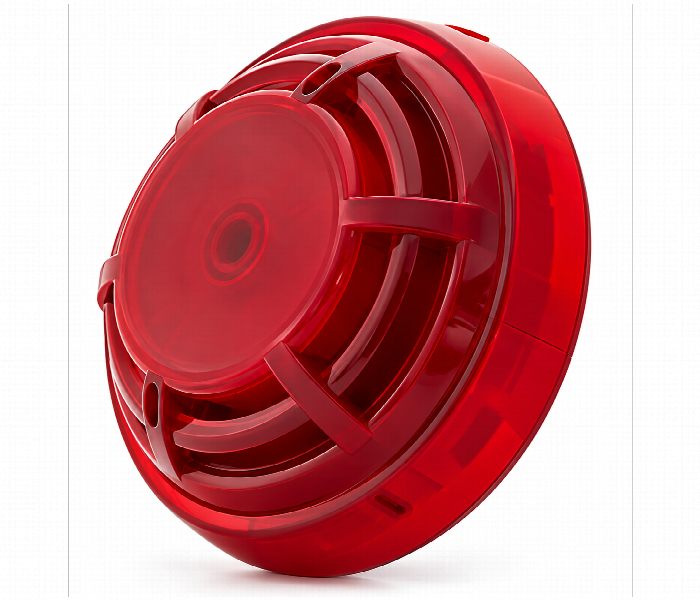

## DM Tech S9000 Conventional Sounder with Flash LED The **DM Tech S9000 Conventional Sounder** is an audible and visual alarm device designed for conventional fire alarm systems. It combines a **Slow Whoop sounder** with a **red flashing LED** to provide clear and effective fire alarm notification. The S9000 complies with **EN54-3** and connects to the fire alarm system through a **two-wire connection** using the B9000 sounder base. ### Key Features * Audible and visual fire alarm indication * Red flashing LED * Slow Whoop alarm tone * Sound output up to **96 dB at 1 metre** * Operating voltage: **9–30 V DC** * Two-wire connection * Compatible with **B9000 base** * Secure locking mechanism * **IP40 protection** * **EN54-3 compliant** ### Technical Specifications **Power Supply:** 9–30 V DC **Alarm Current:** Max. 60 mA at 24 V DC **Sound Level:** 96 dB at 1 m **Frequency:** 0.5–1.2 kHz **Flash Colour:** Red **Connection:** Two-wire line **Operating Temperature:** -15°C to +70°C **Dimensions:** Ø100 mm × H ≤52 mm **Weight:** 0.100 kg ### Applications Suitable for **commercial, industrial and other buildings** requiring reliable audible and visual fire alarm notification. The sounder should be installed by authorized personnel according to the approved fire alarm system design. ### Warranty **36-month warranty** from the date of sale, subject to proper storage, installation, commissioning and operation. Warranty excludes defects caused by natural phenomena or improper use.
